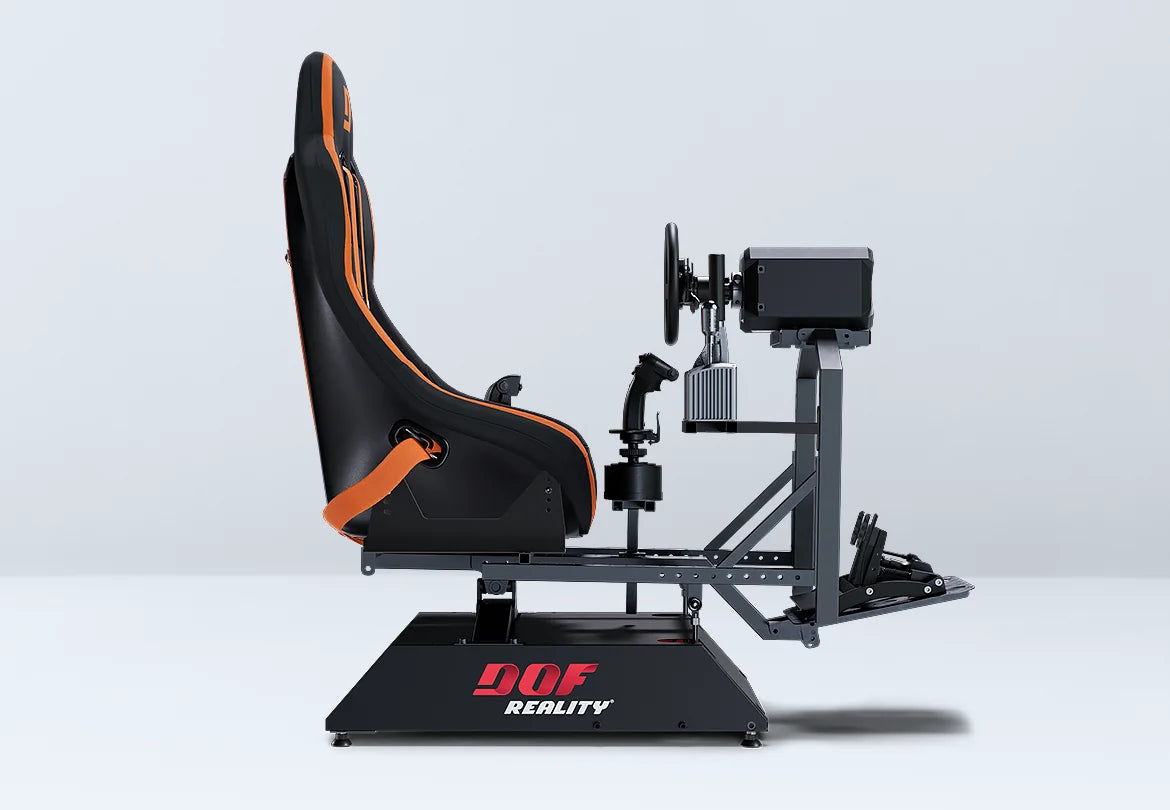

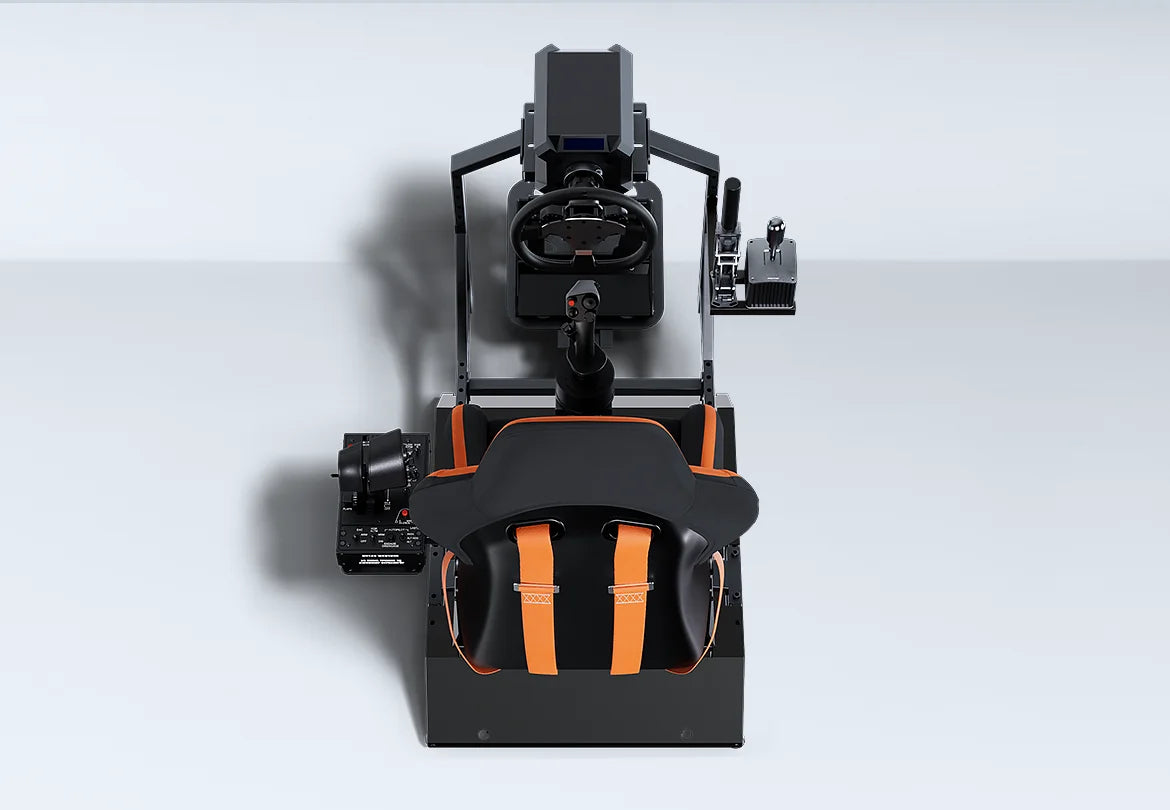

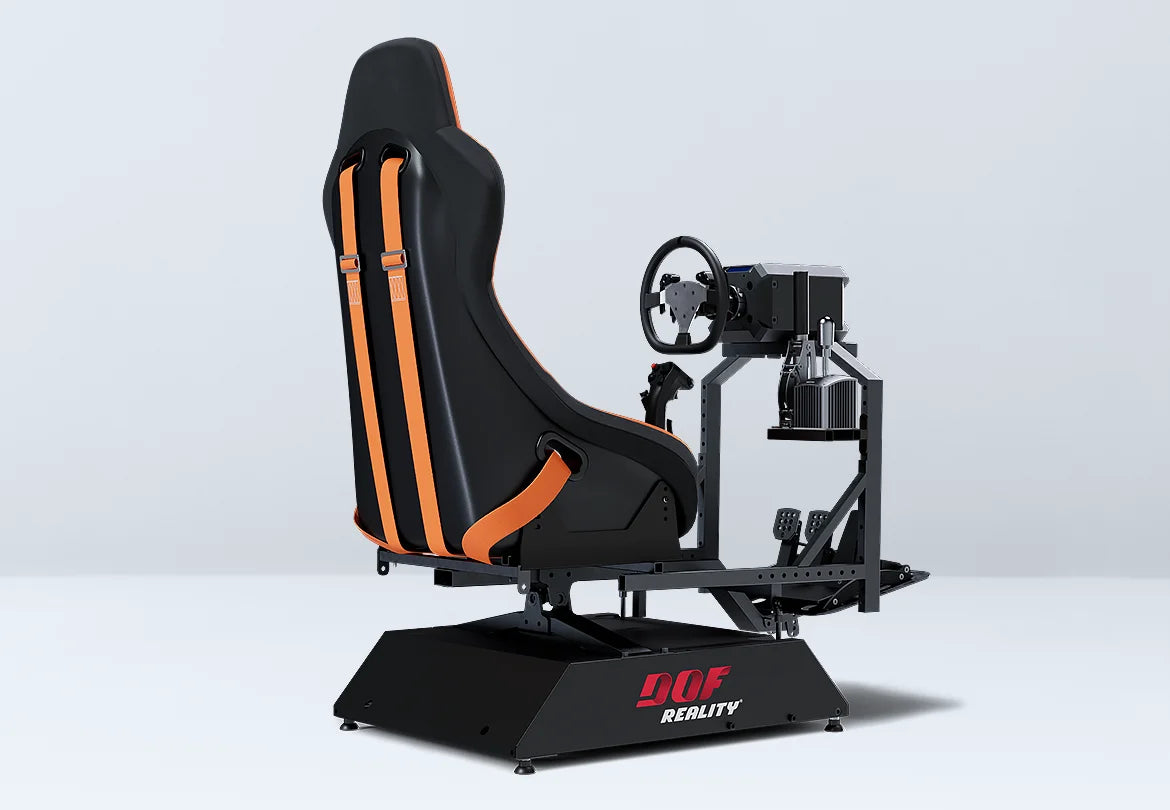

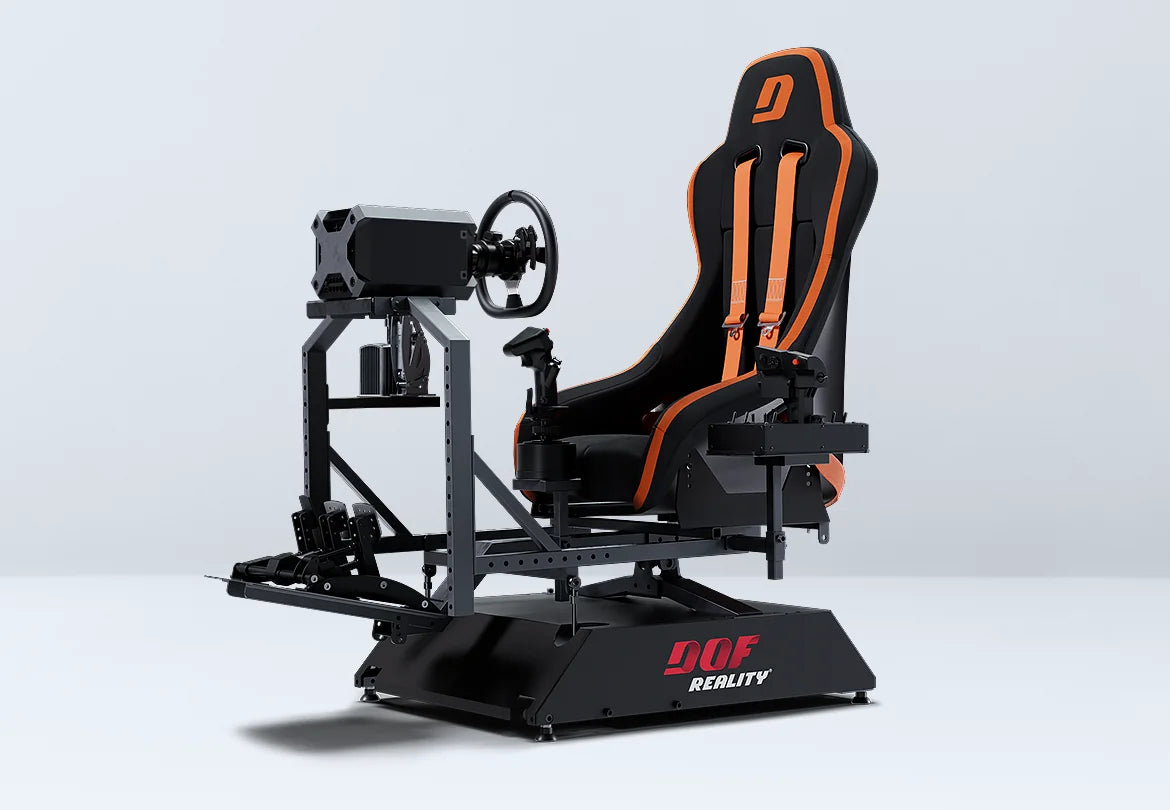

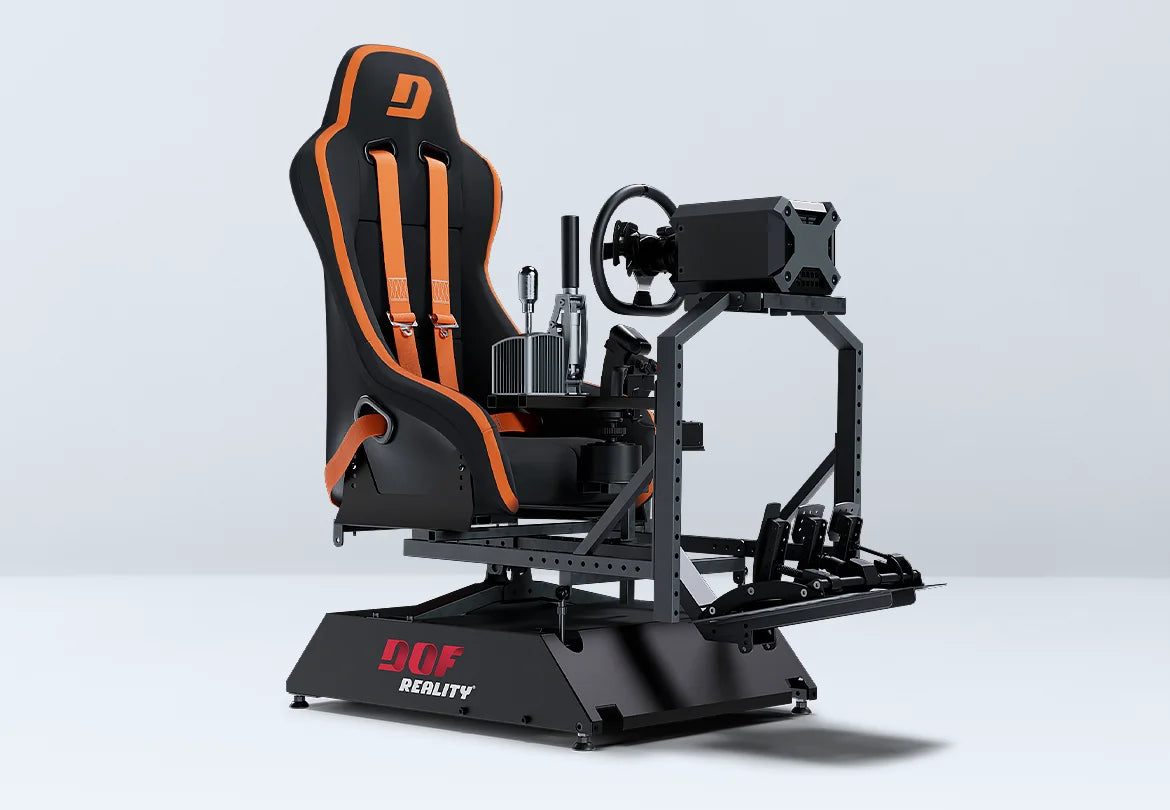

DOF Reality® H2 Universal Motion Platform – 2-Axis HERO (Ready-to-Play Platform)

🛠️ Product Overview

Experience the next level of simulation with the DOF Reality® H2 Universal Motion Platform – 2-Axis HERO, the ultimate plug-and-play motion system designed for both racing and flight simulation. Built with two degrees of freedom (pitch and roll), the H2 delivers lifelike movement that accurately replicates acceleration, braking, cornering, climbs, and descents — immersing you completely in every scenario, whether on the track or in the sky.

Crafted from commercial-grade metal profiles and powered by high-torque motors with precision gearboxes, the H2 ensures ultra-smooth motion for both fast and slow transitions. From road textures and drifts to turbulence and turns, every movement feels authentic and responsive. The full-motion platform moves the entire cockpit — including your seat, wheel, pedals, and monitor — giving you an unmatched sense of realism and control.

⚙️ Key Features

True 2-Axis Motion (Pitch + Roll): Simulates acceleration, braking, cornering, and flight dynamics with precision.

Full Platform Motion: Moves the entire rig for a truly immersive simulation experience.

Enhanced Gearbox System: Provides smoother and quieter motion, ideal for both flight and racing.

Universal Application: Supports racing, flight, and helicopter simulations without compromise.

Professional Build Quality: Rigid metal rig supports normal and F1 seating positions.

Plug-and-Play Design: Includes integrated motors, control unit, motion software, and all required cables.

SimRacingStudio Software: Offers real-time telemetry feedback from your favorite games, simulating road bumps, gear shifts, turbulence, and impacts.

Upgradeable System: Expandable to 3 or 6 degrees of freedom (H3, H6) for future motion enhancement.

High Weight Capacity: Supports up to 440 lbs (200 kg) for broad user compatibility.

📏 Specifications

Degrees of Freedom: 2 DOF (Pitch + Roll)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 50 cm/s (86°/s)

Torque: 25 N·m

Acceleration: 0.7G (T) / 0.5G (L)

Power Consumption: 500 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 440 lbs / 200 kg

Floor Footprint: 2 × 5 ft, 2 ft height (59 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 64 lb (37 × 15 × 11 in) / 29 kg (94 × 38 × 28 cm)

Box 2: 64 lb (32 × 24 × 10 in) / 29 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB connection

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality H2 Universal Platform?

True-to-Life Motion: Feel the authentic forces of flight and racing with accurate pitch and roll simulation.

Enhanced Precision & Smoothness: Gearbox motors provide stable, vibration-free movement.

Versatile Design: Switch seamlessly between racing and flight simulation setups.

Durable Construction: Built to last with reinforced commercial-grade steel components.

Immersive Experience: Moves your entire cockpit for complete motion realism.

Upgradeable Motion System: Expand to H3 or H6 for more advanced degrees of freedom.

Proven Performance: Trusted by sim racers, flight trainers, and enthusiasts worldwide since 2014.

24/7 Expert Support: Backed by a full manufacturer warranty and around-the-clock customer service.

📦 What’s Included

Rigid metal rig (supports normal & F1 seating positions)

Mounts for seat or sliding rails

Integrated power drive motors with gearbox

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
