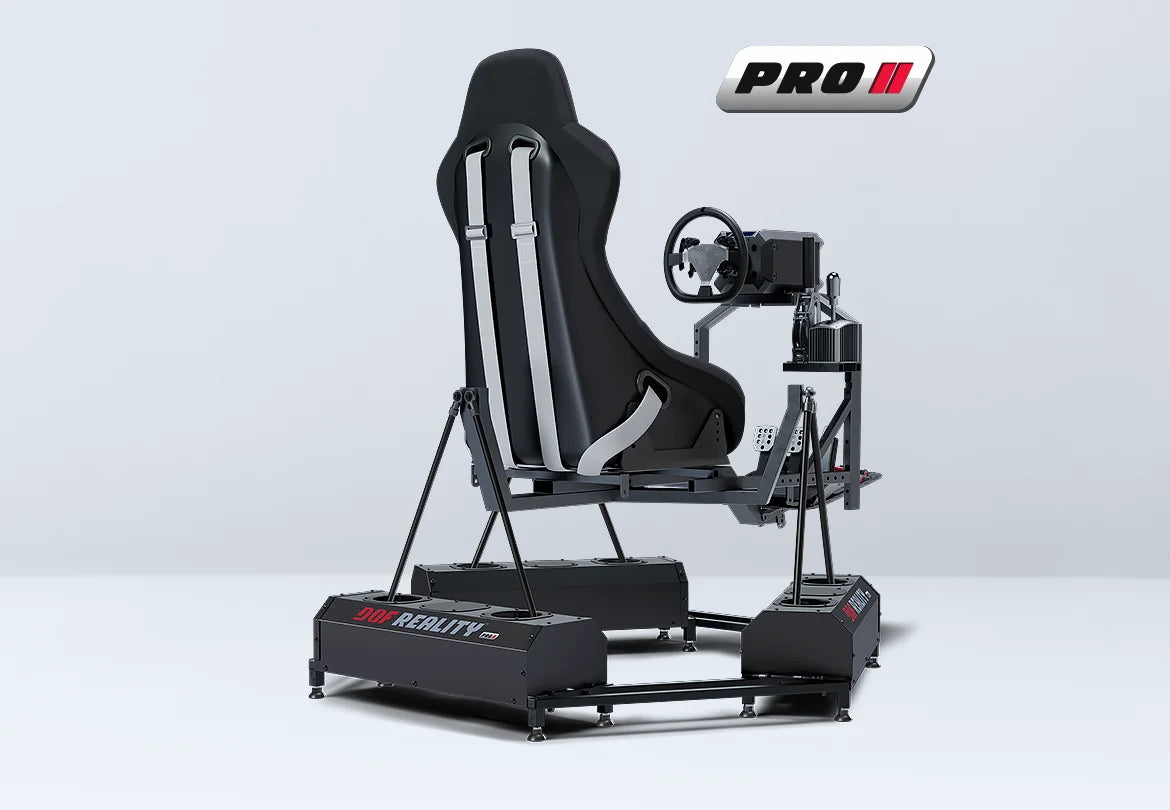

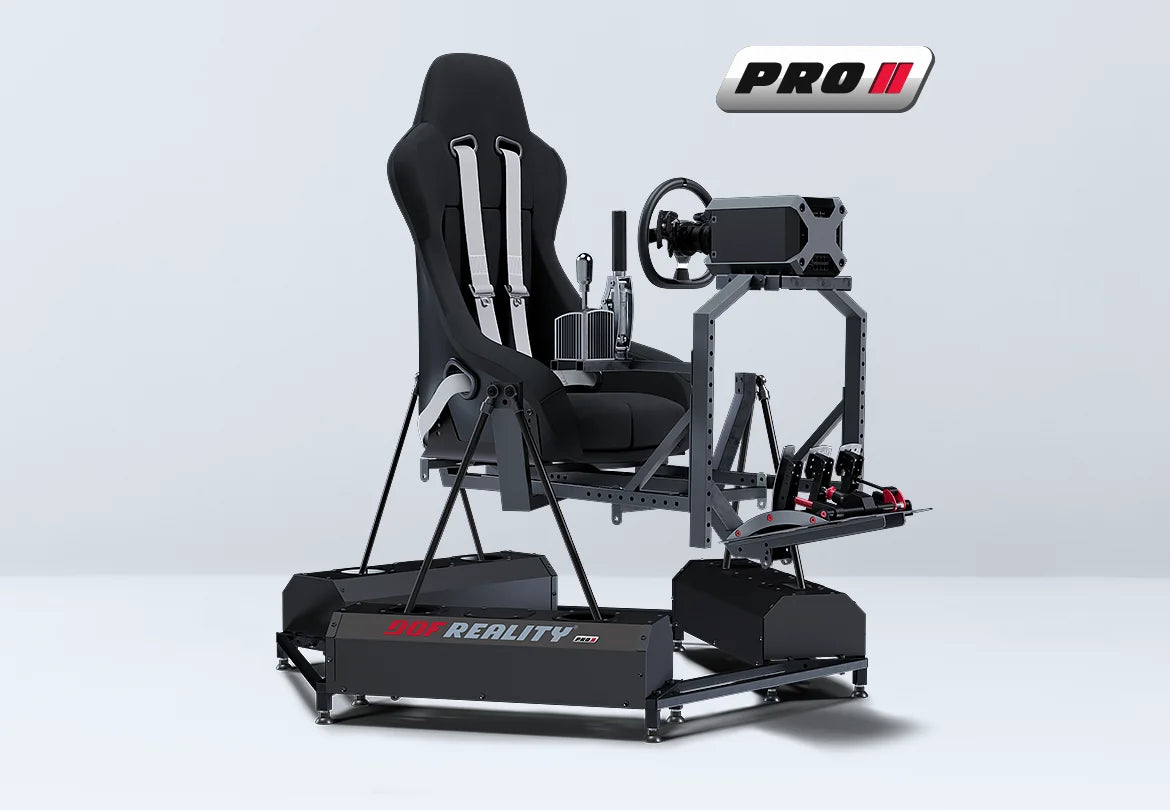

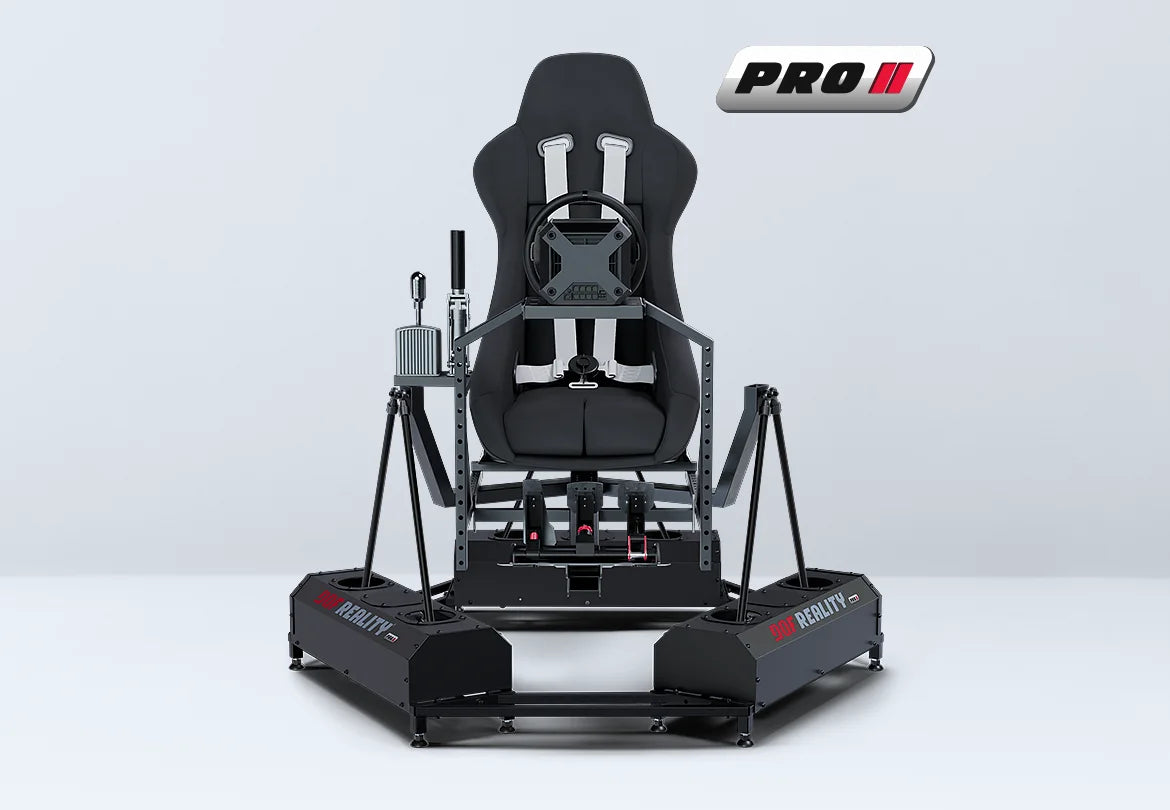

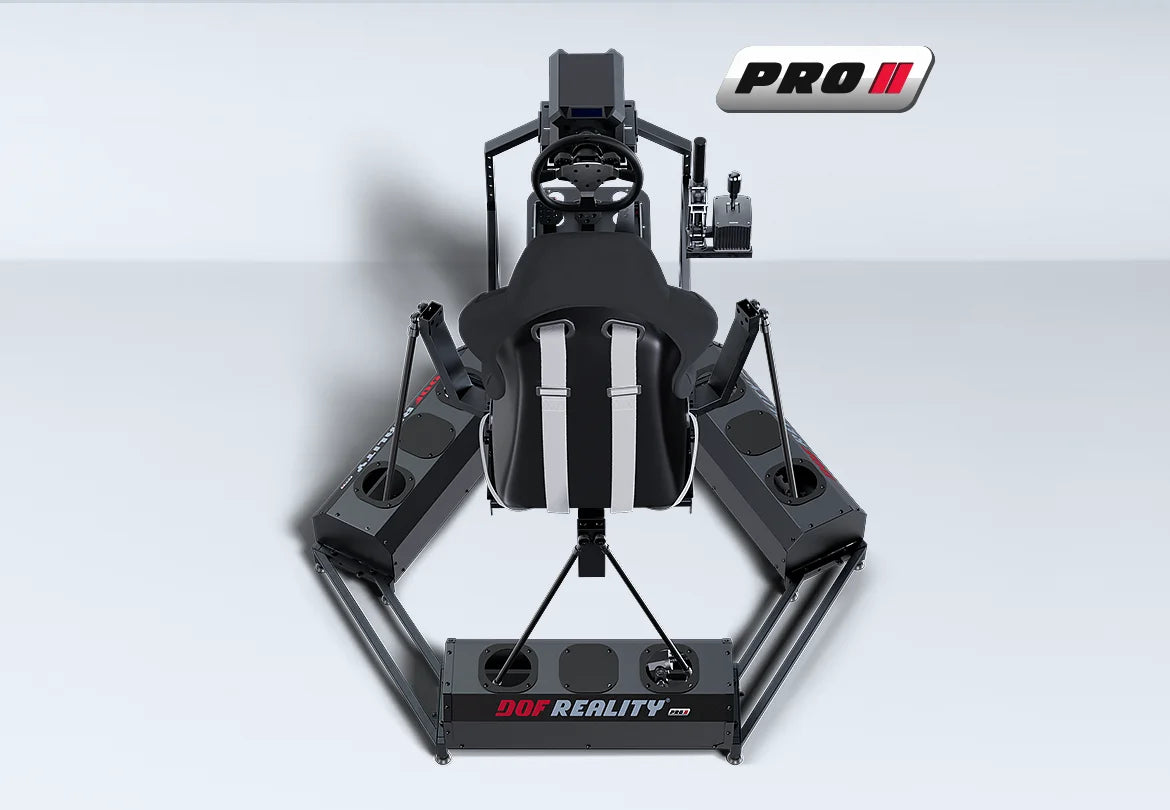

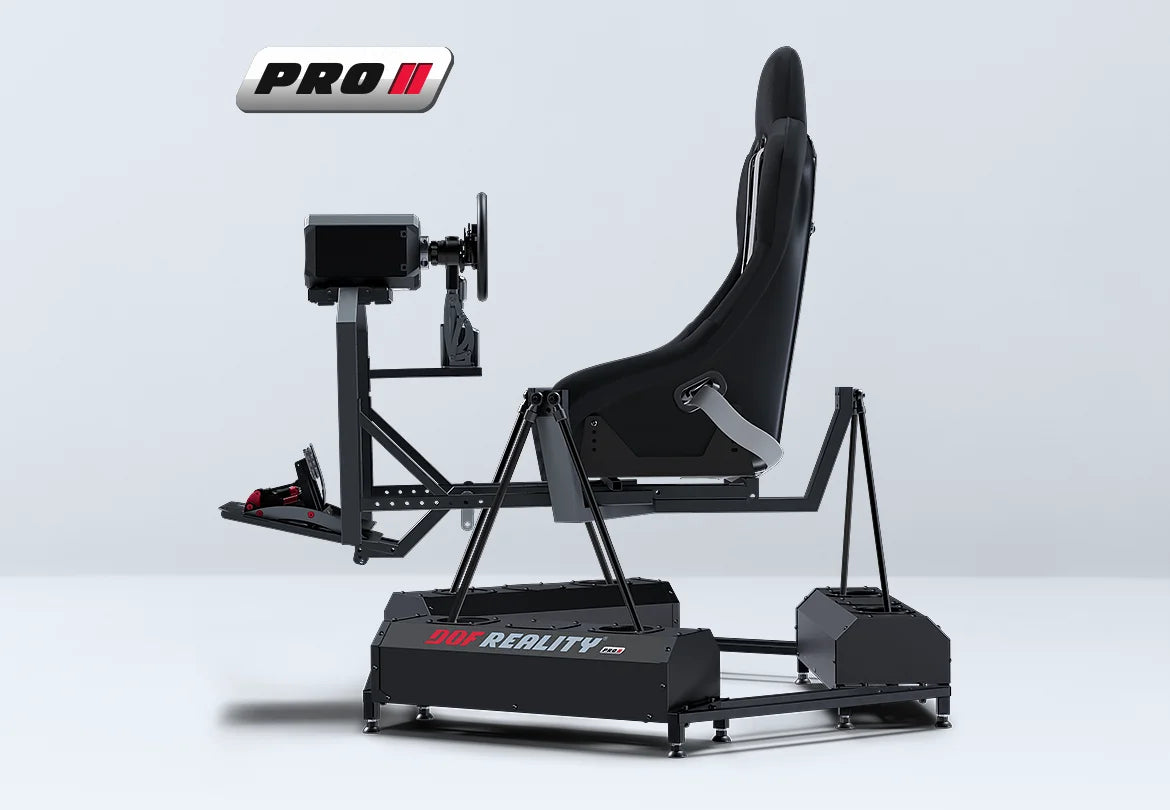

DOF Reality® P6 Motion Racing Rig – 6-Axis PRO (Ready-to-Play Platform)

🛠️ Product Overview

Step into a new dimension of realism with the DOF Reality® P6 Motion Racing Rig – 6-Axis PRO, the ultimate professional-grade motion platform designed for elite simulation performance. Engineered for racing, flight, and helicopter simulation, the P6 delivers true six degrees of freedom (6DOF) — reproducing every motion and vibration with unmatched precision.

Whether accelerating down a straightaway, experiencing lift in flight, or feeling the suspension flex through a corner, the P6 moves dynamically in pitch, roll, yaw, surge, sway, and heave, recreating authentic motion cues that fully immerse you in your simulation environment.

Since 2014, DOF Reality has been a world leader in designing high-performance yet affordable motion platforms. The P6’s advanced engineering — featuring precision gearbox motors for ultra-smooth low-speed control — provides the refined, lifelike response demanded by professionals, training facilities, and serious simulation enthusiasts.

⚙️ Key Features

True 6-Axis Motion (Pitch, Roll, Yaw, Surge, Sway, Heave): Replicates all dynamic movements for racing, flight, and helicopter scenarios.

Full Platform Motion: Moves the complete cockpit — seat, pedals, controls, and monitor — for perfectly synchronized realism.

Precision Gearbox System: Ensures ultra-smooth, refined motion, ideal for both high-speed racing and slow flight transitions.

G-Force Simulation: Recreates acceleration, braking, and cornering forces through full-body pressure feedback.

SimRacingStudio Software Integration: Converts real-time telemetry data into precise motion feedback, simulating bumps, impacts, terrain texture, and aerodynamic shifts.

Universal Compatibility: Works seamlessly with all popular wheels, pedals, yokes, flight sticks, and VR setups.

Industrial-Grade Durability: Built with commercial metal profiles and rigid motor housings for long-term professional use.

Plug-and-Play Configuration: Includes all required cables, control unit, software license, and setup tools for easy assembly.

Upgradable & Future-Proof: Designed as the top-tier PRO platform, requiring no further expansion — the P6 is the final upgrade.

📏 Specifications

Degrees of Freedom: 6 DOF (Pitch, Roll, Yaw, Surge, Sway, Heave)

Full Platform Motion: Yes

Range of Motion: 17°

Speed: 75 cm/s (105°/s)

Torque: 28 N·m

Acceleration: 0.5G in all directions

Power Consumption: 1500 W (peak)

Material: Commercial-grade metal profiles with rigid motor covers

Supported Pilot Weight: Up to 440 lbs / 200 kg

Floor Footprint: 4 × 5 ft, 2 ft height (120 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 133 lb (32 × 28 × 12 in) / 60 kg (80 × 70 × 30 cm)

Box 2: 144 lb (32 × 28 × 12 in) / 65 kg (80 × 70 × 30 cm)

Input Power: 100–240V Control Unit with USB connection

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality P6 PRO?

Unmatched Realism: True 6DOF motion replicates every movement, vibration, and physical cue.

Multi-Simulation Capability: Perfect for racing, flight, and helicopter applications.

Superior Gearbox Engineering: Provides ultra-precise low-speed and smooth high-speed control.

Professional-Grade Build: Designed for long-term use in simulation centers and training environments.

Complete System Integration: Works with all major simulator software and hardware ecosystems.

Scalable for Business or Enthusiasts: Ideal for commercial use or dedicated home setups.

Comprehensive Support: Includes full warranty coverage and 24/7 professional assistance.

📦 What’s Included

Rigid metal frame (supports standard & F1 seating positions)

Mounts for seat or sliding rails

Integrated gearbox-driven power motors

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
