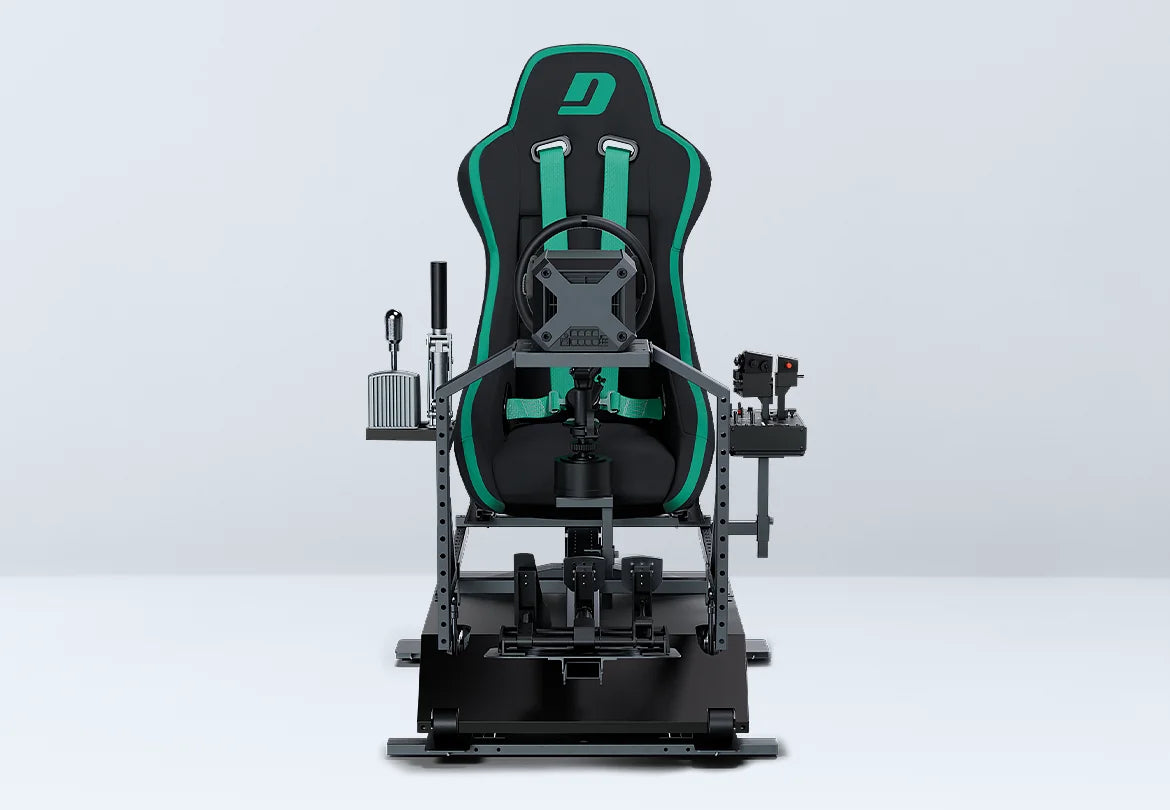

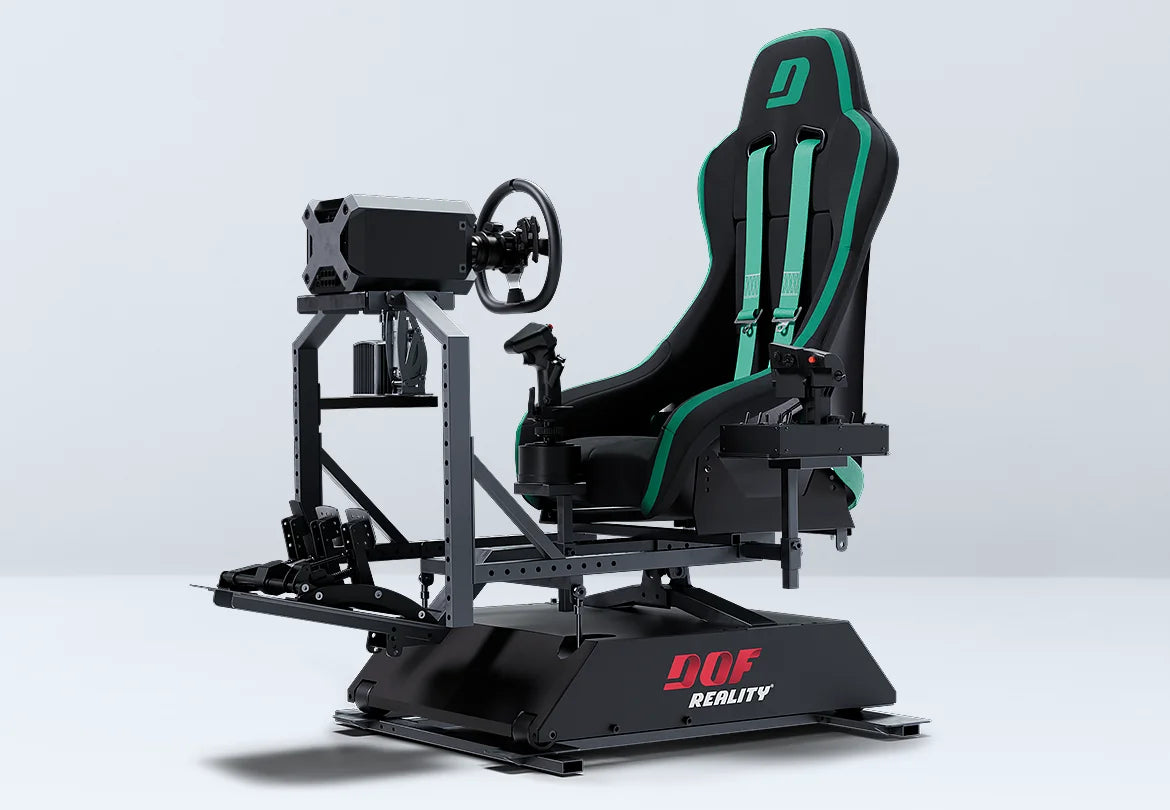

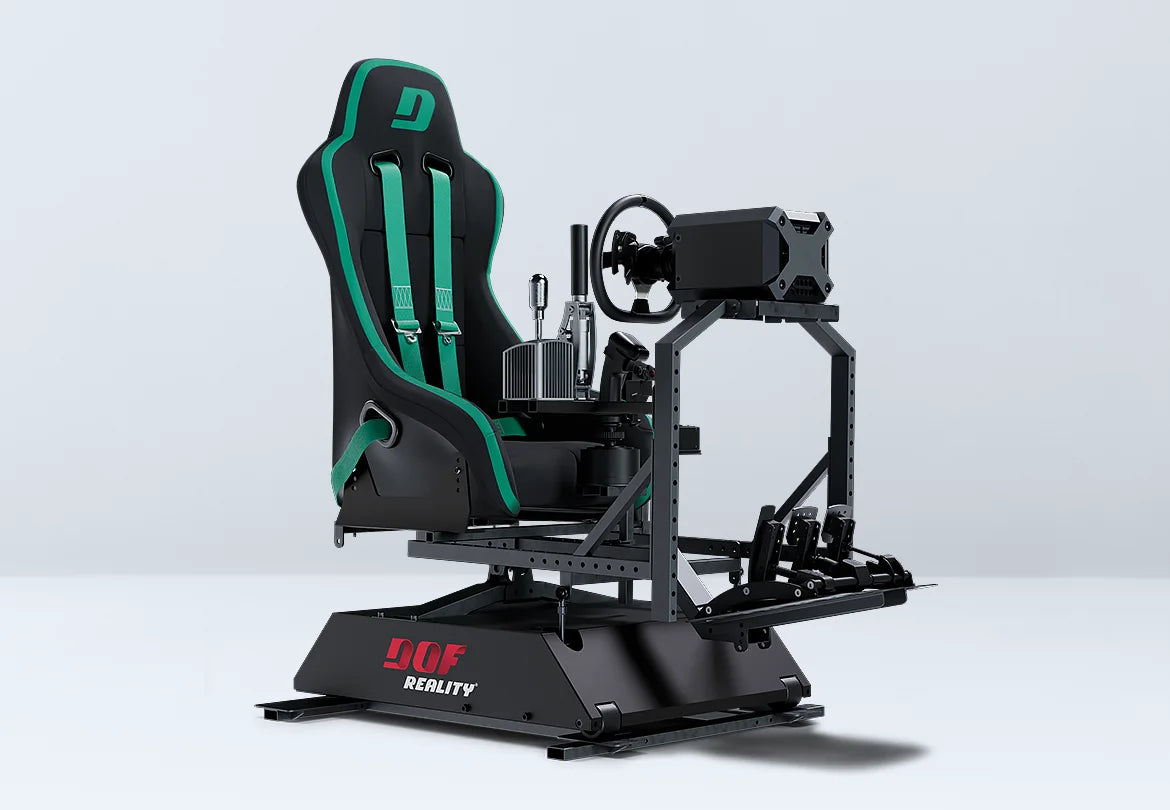

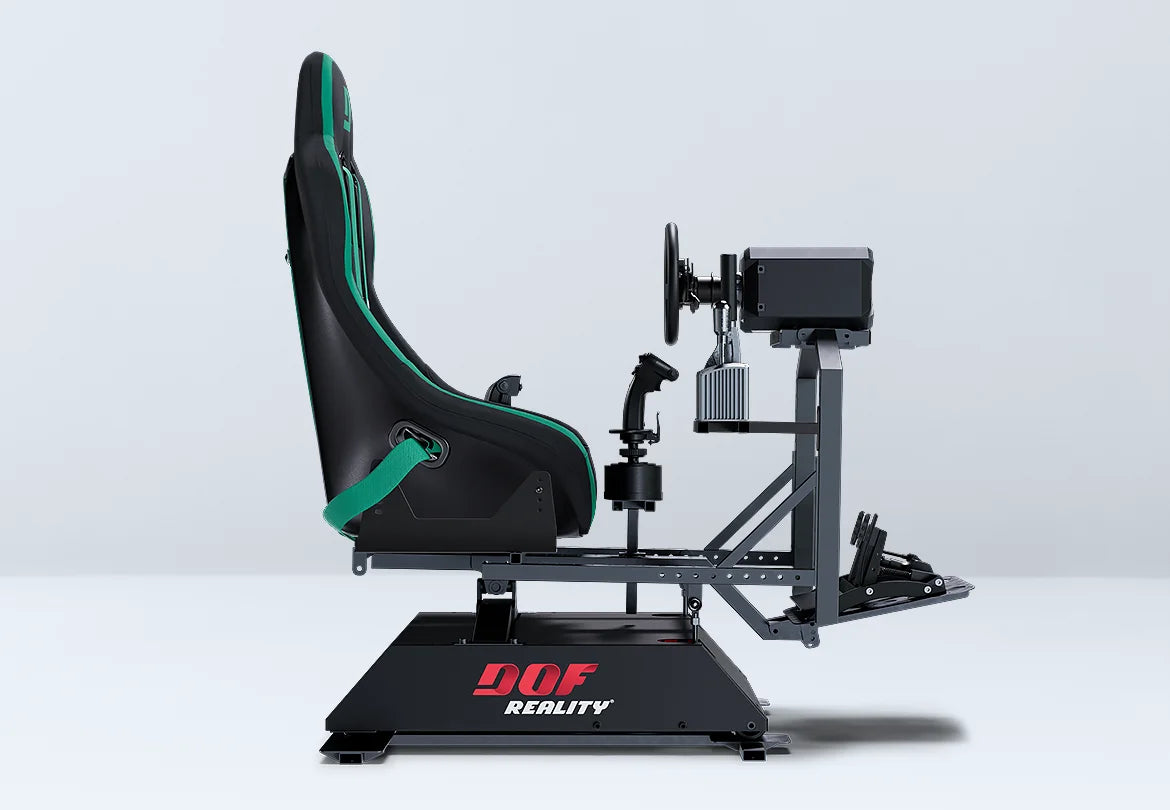

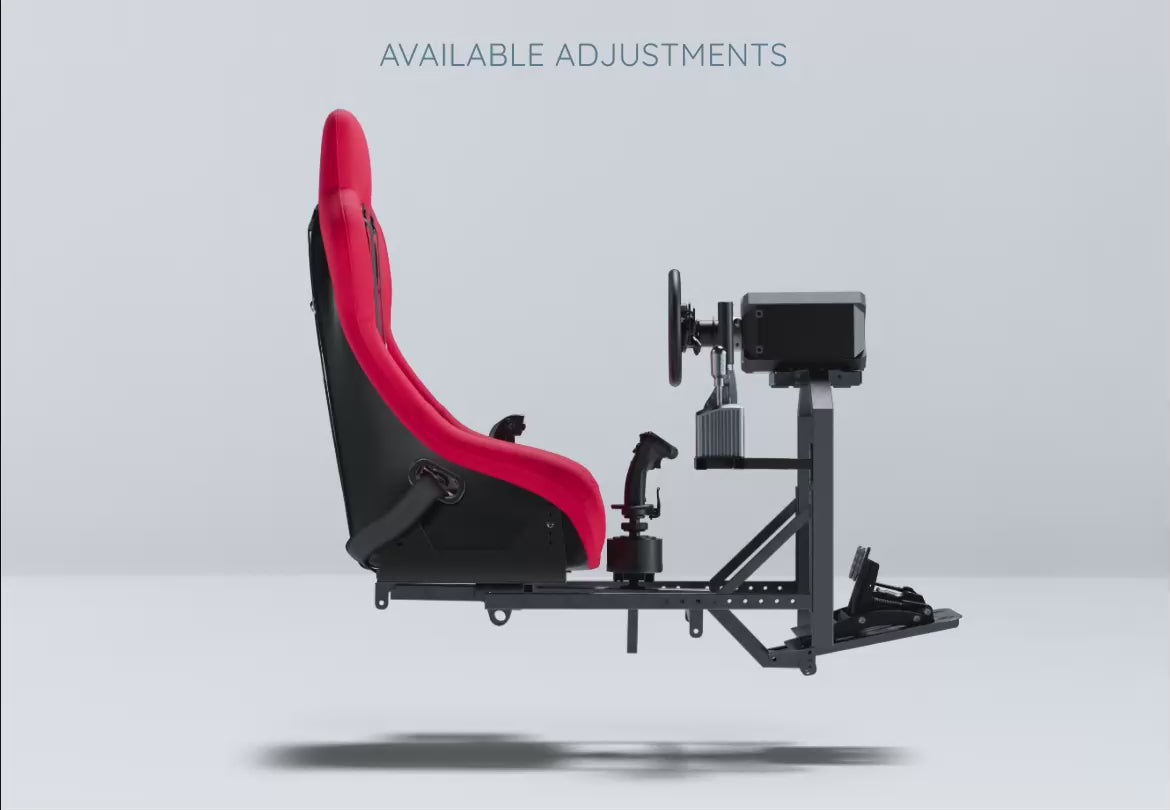

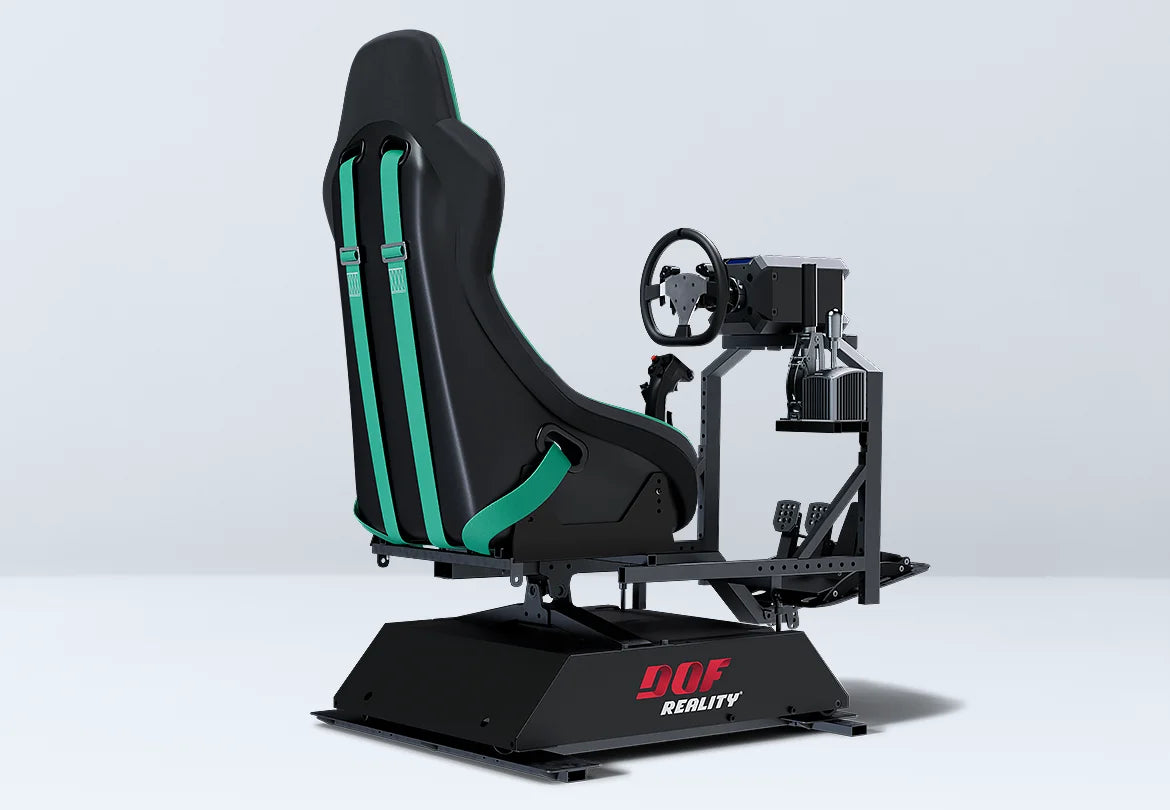

DOF Reality® H3 Universal Motion Platform – 3-Axis HERO (Ready-to-Play Platform)

🛠️ Product Overview

Step into the most immersive simulation experience with the DOF Reality® H3 Universal Motion Platform – 3-Axis HERO, a professional-grade motion system built for racing, flight, and helicopter simulation. Featuring three degrees of freedom (pitch, roll, and yaw), the H3 accurately replicates acceleration, braking, drifting, turbulence, and turning forces for lifelike realism.

With its enhanced gearbox motors, the H3 provides ultra-smooth motion control ideal for both high-speed racing and precision flight simulation. The full-motion system moves your entire cockpit — seat, pedals, wheel, joystick, and monitors — allowing for a completely synchronized and immersive experience. Whether for home enthusiasts or professional setups, the H3 delivers performance, durability, and depth that redefine motion simulation.

⚙️ Key Features

True 3-Axis Motion (Pitch + Roll + Yaw): Simulates every motion dynamic from acceleration and cornering to turbulence and banking.

Full Platform Motion: Moves your entire rig — seat, controls, and display — for full-body feedback and authentic motion sensation.

Precision Gearbox Motors: Upgraded motor design ensures smoother, more stable, and quieter motion ideal for both racing and flight.

Universal Use: Designed for racing, flight, and helicopter simulations with no performance compromise.

Professional Build: Heavy-duty metal frame supports standard and F1 seating positions.

SimRacingStudio Software: Real-time telemetry feedback delivers motion cues for gear shifts, collisions, road texture, bumps, and flight forces.

Plug-and-Play Operation: Includes all electronics, cables, software, and assembly tools — ready to use.

Upgradeable Platform: Expandable to 6 degrees of freedom (H6) for the ultimate simulation realism.

High Load Capacity: Supports pilots and drivers up to 440 lbs (200 kg).

📏 Specifications

Degrees of Freedom: 3 DOF (Pitch + Roll + Yaw/Rear Traction)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 50 cm/s (86°/s)

Torque: 25 N·m

Acceleration: 0.7G (T) / 0.5G (L)

Power Consumption: 750 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 440 lbs / 200 kg

Floor Footprint: 3 × 5 ft, 2 ft height (100 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 78 lb (37 × 15 × 11 in) / 35 kg (94 × 38 × 28 cm)

Box 2: 97 lb (32 × 24 × 10 in) / 44 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality H3 Universal Platform?

Unmatched Realism: Simulates g-forces, traction loss, understeer, oversteer, and drift with real mechanical accuracy.

Enhanced Smoothness: Additional gearboxes provide refined motion ideal for both racing and flight.

Universal Compatibility: Perfect for multiple sim types — racing, flight, and VR-based training.

Built to Last: Crafted from commercial-grade steel for long-term durability and performance.

Professional Performance: Designed for enthusiasts, training environments, and esports applications.

Future-Proof Design: Modular upgrade path to 6 DOF motion system (H6).

Outstanding Support: Backed by a 1-year manufacturing warranty and 24/7 technical assistance.

📦 What’s Included

Rigid metal rig (supports normal & F1 seating positions)

Mounts for seat or sliding rails

Integrated power drive motors with gearbox

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
