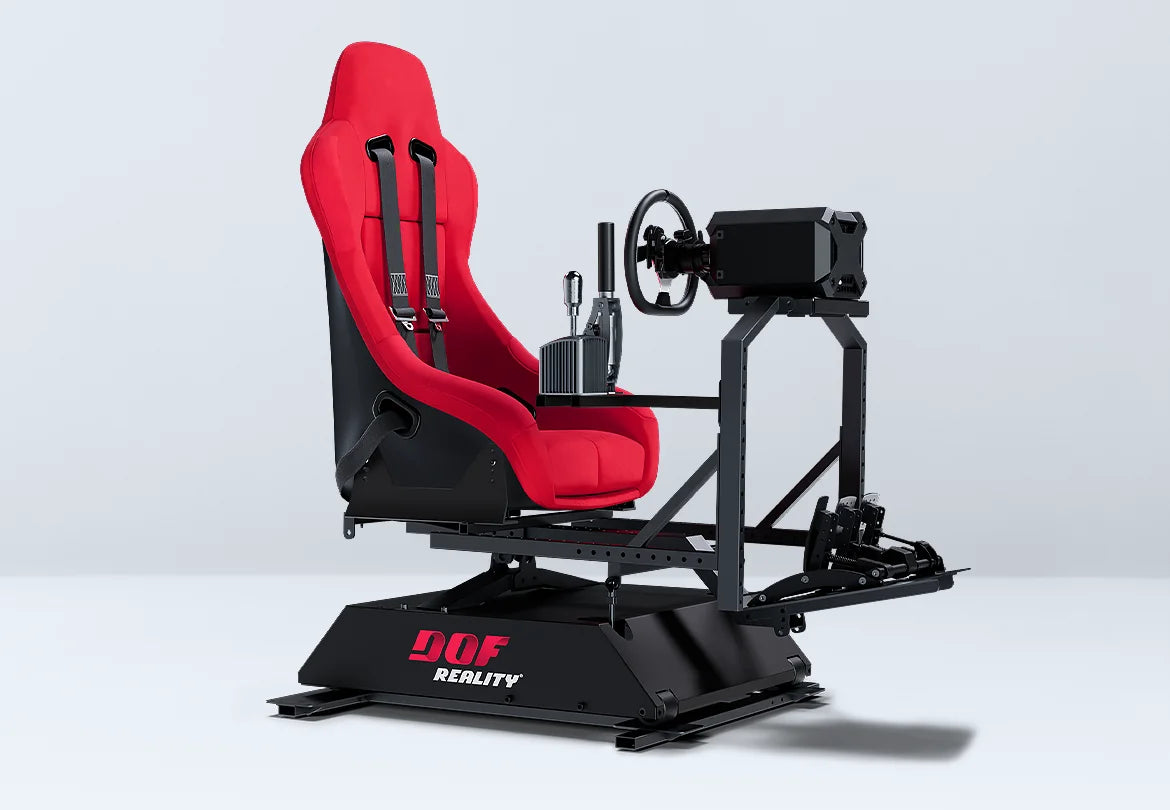

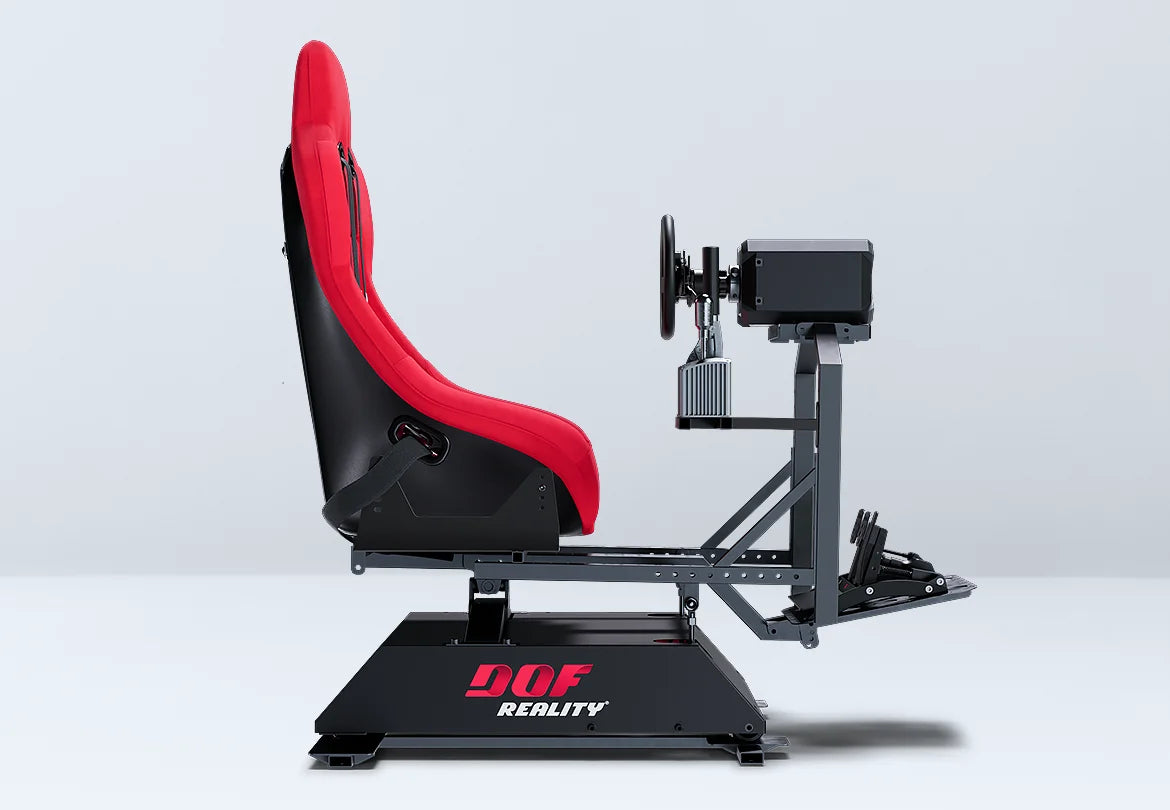

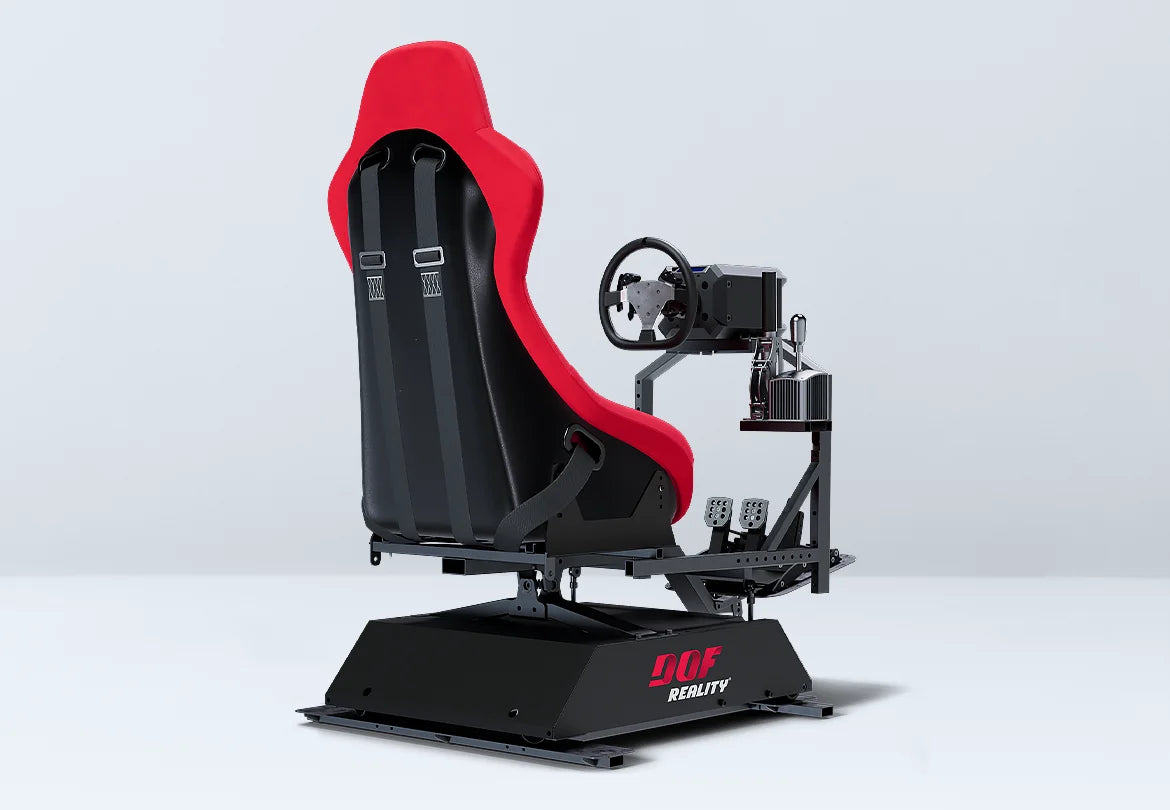

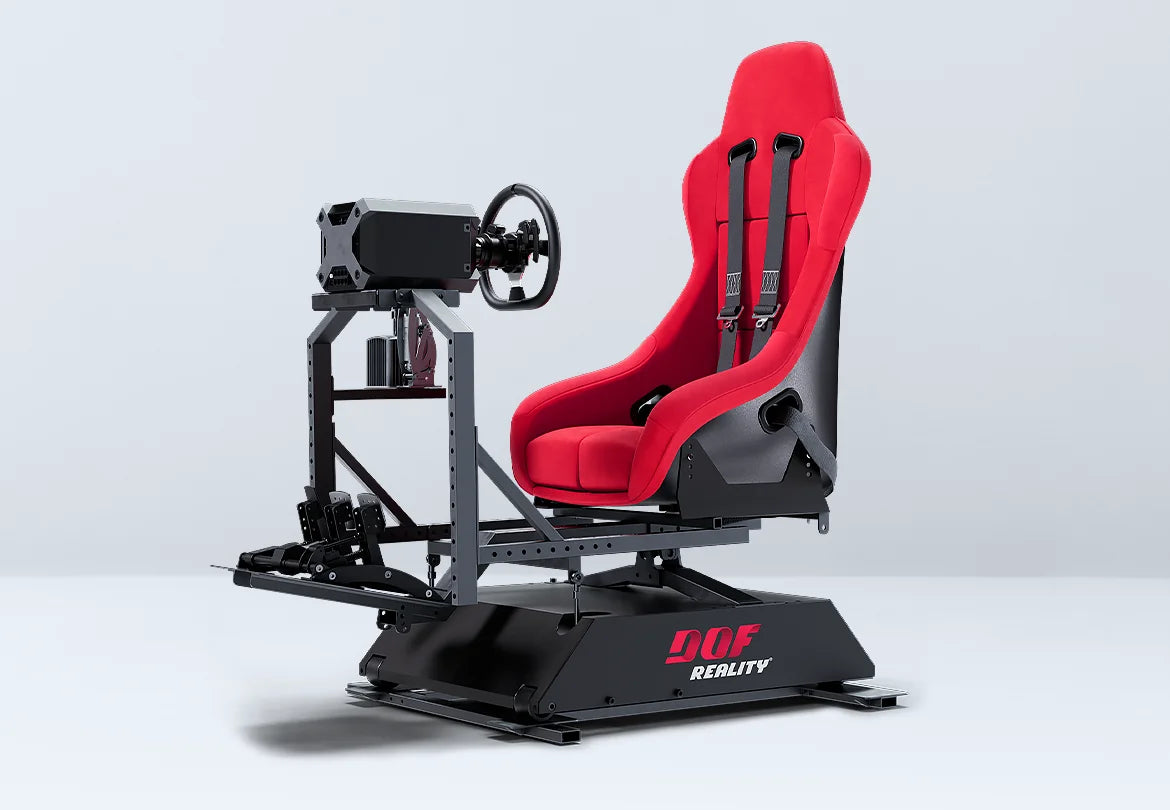

DOF Reality® H3 Motion Racing Rig – 3-Axis HERO (Ready-to-Play Platform)

🛠️ Product Overview

Experience the next level of simulation realism with the DOF Reality® H3 Motion Racing Rig – 3-Axis HERO, a professional full-motion platform built for racing and flight simulation enthusiasts who demand the most lifelike experience. With three degrees of freedom (pitch, roll, and yaw), the H3 delivers immersive motion feedback that replicates acceleration, braking, cornering, oversteer, understeer, and even traction loss—so every turn, drift, and bump feels real.

Crafted from commercial-grade metal and powered by precision-engineered drive motors, the H3 is designed to move your entire cockpit—seat, wheel, pedals, joystick, and monitor—creating a true-to-life full-motion simulation environment. Whether for personal setups or commercial training systems, the H3 combines durability, technology, and performance for unmatched realism.

⚙️ Key Features

True 3-Axis Motion System: Delivers pitch, roll, and rear traction (yaw) for complete motion immersion.

Full Platform Movement: Moves your entire cockpit—seat, wheel, pedals, and monitor—for authentic vehicle dynamics.

Professional Traction Loss System: Accurately simulates oversteer, understeer, and drifting forces.

Rigid Metal Frame: Designed for both standard and F1 seating positions, ensuring stability and ergonomic comfort.

Plug-and-Play Ready: Includes integrated motors, control unit, cables, and motion software—ready to use out of the box.

SimRacingStudio Software: Provides real-time telemetry-based motion effects for bumps, vibrations, gear shifts, and collisions.

Universal Compatibility: Works seamlessly with all major VR systems, seats, wheels, pedals, and joysticks.

Upgradeable Platform: Expandable to 6 degrees of freedom (H6) for even more advanced simulation realism.

📏 Specifications

Degrees of Freedom: 3 DOF (Pitch + Roll + Yaw/Rear Traction)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 50 cm/s (86°/s)

Torque: 25 N·m

Acceleration: 0.7G (T) / 0.5G (L)

Power Consumption: 750 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 330 lbs / 150 kg

Floor Footprint: 3 × 5 ft, 2 ft height (100 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 78 lb (37 × 15 × 11 in) / 35 kg (94 × 38 × 28 cm)

Box 2: 97 lb (32 × 24 × 10 in) / 44 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality H3?

Unrivaled Motion Precision: Simulates every vehicle movement with professional-grade accuracy.

Dynamic Traction System: Realistically reproduces rear-end movement, drifting, and traction loss.

Full Immersion: Feel acceleration, braking, and cornering forces just like in a real race car.

Durable Engineering: Built to last with industrial-quality metal construction.

Expandable & Future-Proof: Modular design allows easy upgrades to the H6 model.

Trusted Performance: Used worldwide by esports drivers, training centers, and simulation pros.

Exceptional Support: Backed by 24/7 expert technical assistance and a full manufacturer warranty.

📦 What’s Included

Rigid metal rig (supports normal & F1 seating positions)

Mounts for seat or sliding rails

Integrated power drive motors

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty

🧰 Warranty & Support

The DOF Reality® H3 comes with a 1-Year Full Warranty and around-the-clock customer support. Our technical team is ready to help you customize your setup and ensure maximum performance for your specific simulator configuration.
