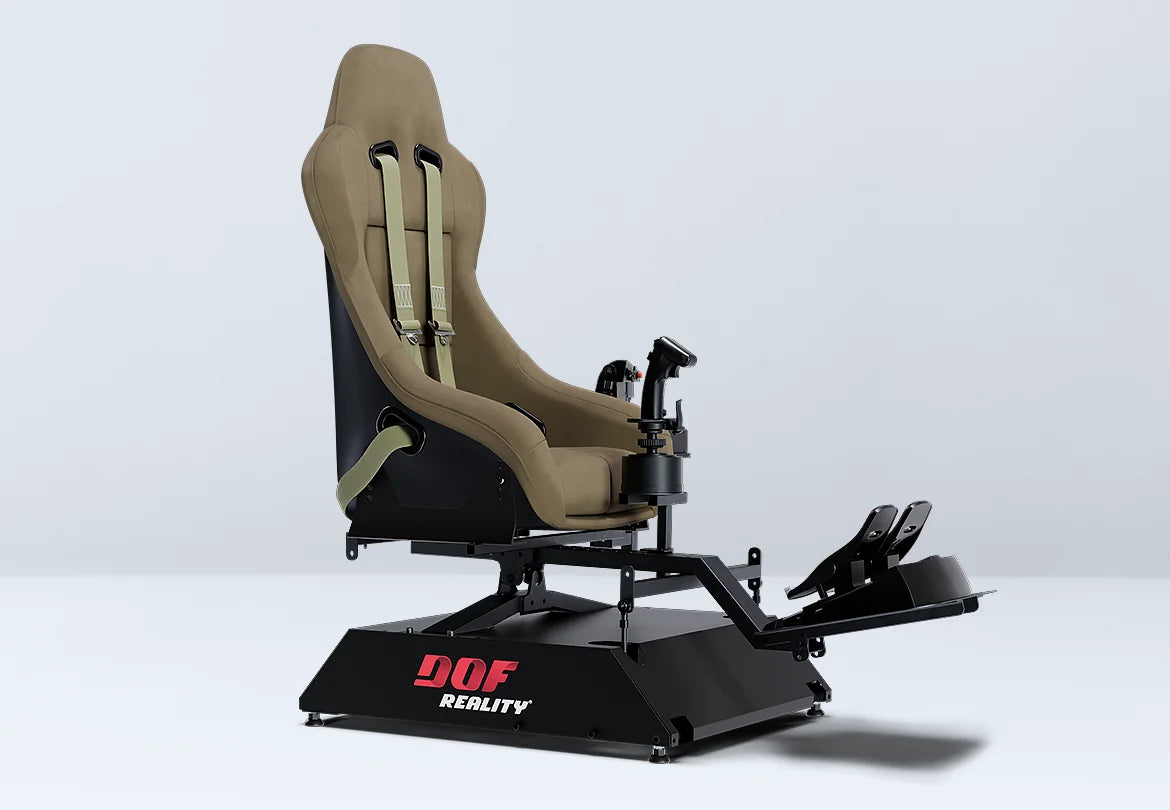

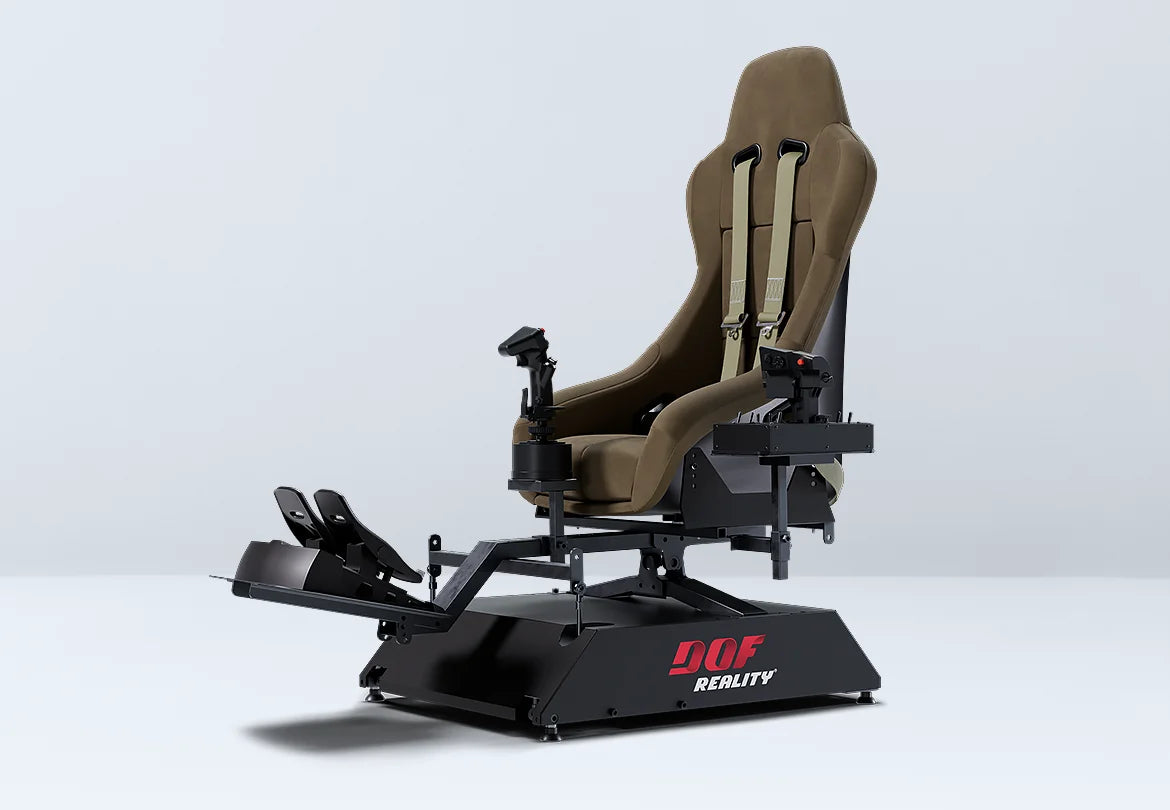

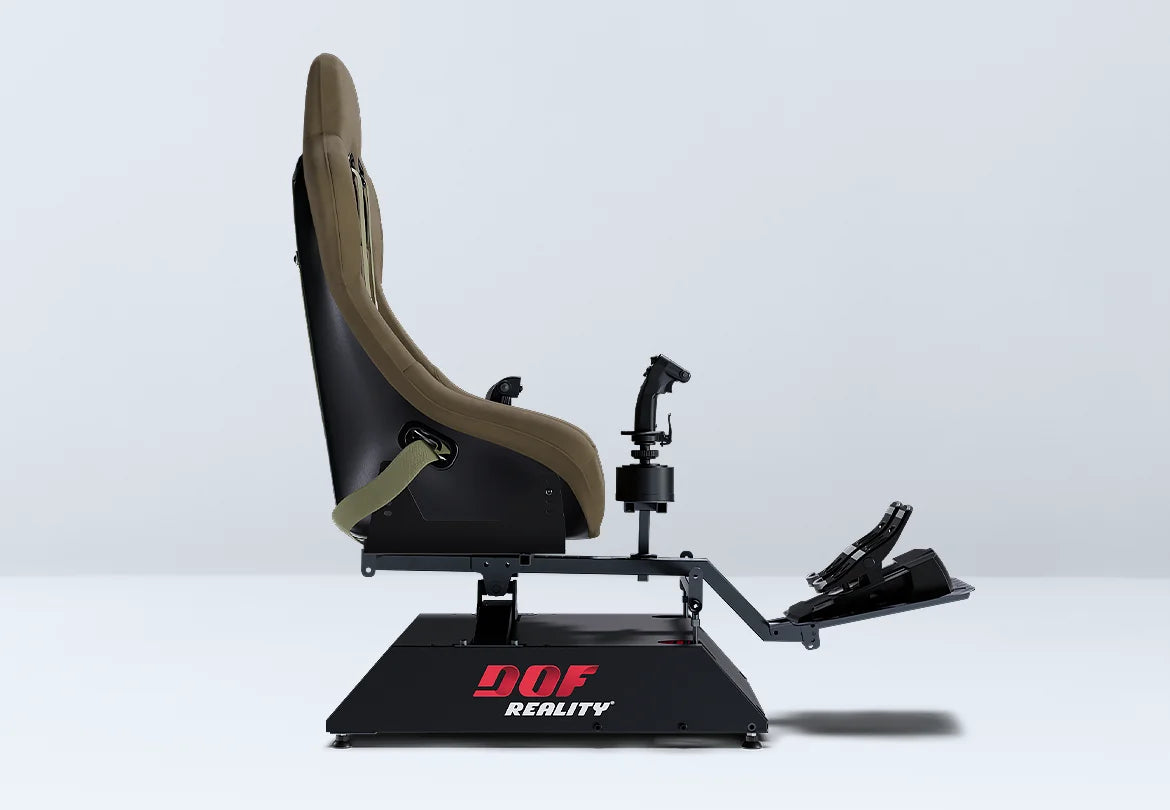

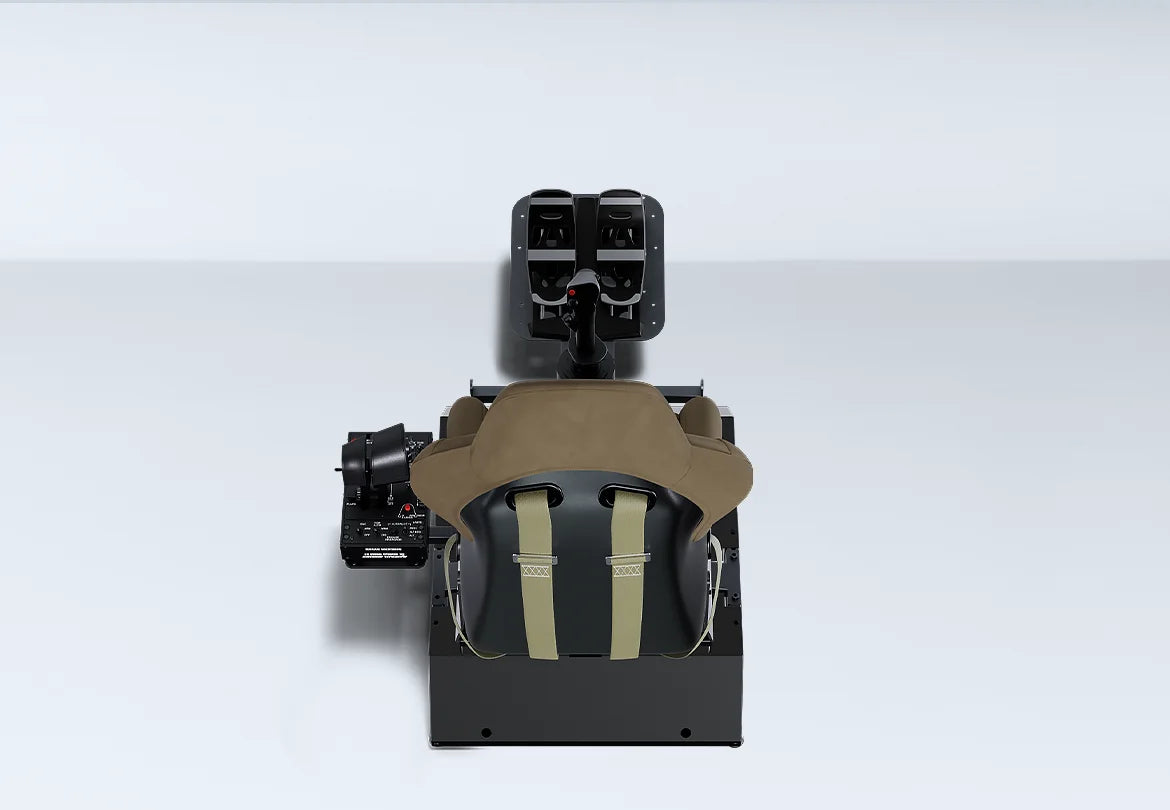

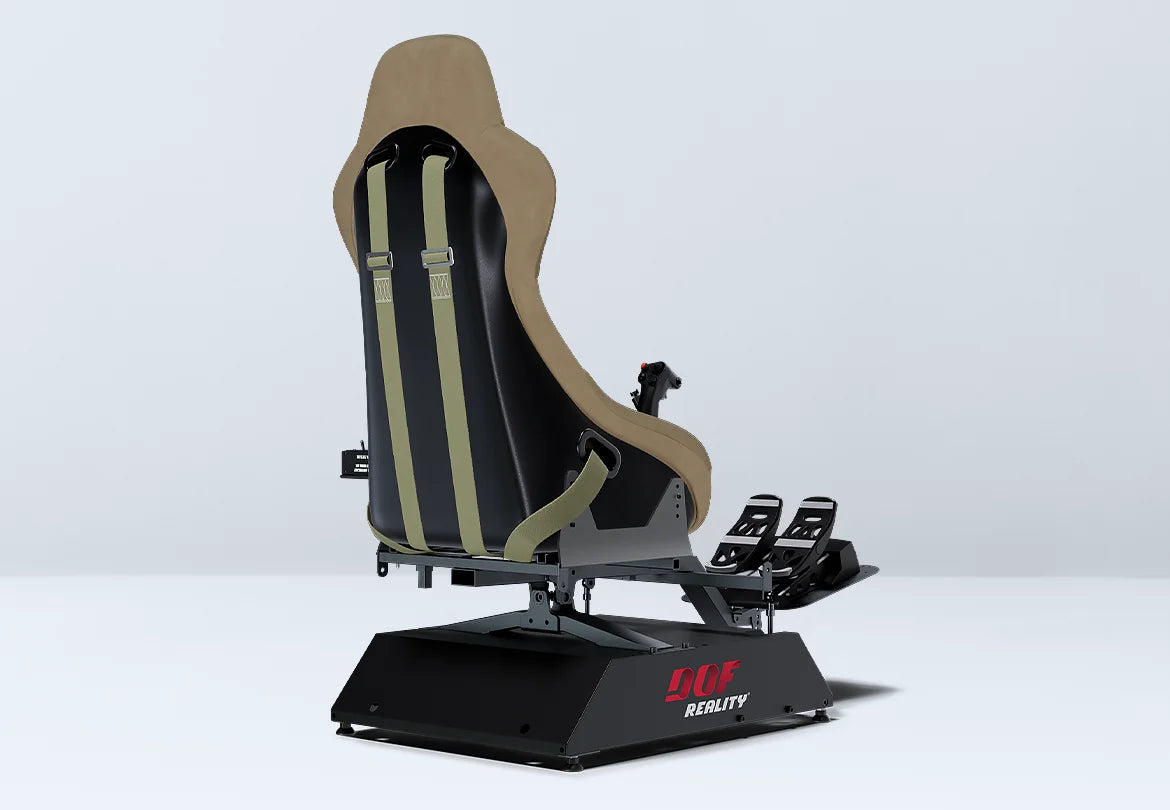

DOF Reality® H2 Motion Helicopter Cockpit – 2-Axis HERO (Ready-to-Play Platform)

🛠️ Product Overview

Take to the skies with the DOF Reality® H2 Motion Helicopter Cockpit – 2-Axis HERO, a professional-grade full-motion platform engineered to deliver a truly lifelike helicopter simulation experience. Designed with two degrees of freedom (pitch and roll), this advanced system recreates the physical sensations of flight—climbs, descents, and coordinated turns—with exceptional smoothness and precision.

Featuring enhanced gearbox motors, the H2 offers the fluid and controlled movement essential for realistic helicopter flight maneuvers. It’s also versatile enough to handle fixed-wing flight and even racing simulations with no compromises in performance. Constructed from commercial-grade metal profiles and featuring full-motion design, the H2 moves your entire cockpit—including seat, cyclic, collective, pedals, and monitor—delivering total immersion.

⚙️ Key Features

True 2-Axis Motion (Pitch + Roll): Realistically simulates climb, descent, and side-to-side helicopter dynamics.

Full Platform Motion: Moves the entire rig—seat, controls, and monitor—for maximum realism.

Precision Gearbox Motors: Enhanced motor system ensures ultra-smooth slow-motion operation, ideal for helicopter simulation.

Universal Application: Suitable for helicopter, fixed-wing, and racing simulations without limitations.

SimRacingStudio Software: Provides telemetry-based motion feedback for turbulence, vibrations, and flight dynamics.

Professional Construction: Built from reinforced metal for strength, durability, and accuracy.

Plug-and-Play Operation: Comes preconfigured with all motors, cables, software, and tools.

Upgradeable Platform: Expandable to higher-end motion systems (H3 or H6) for 3 or 6 degrees of freedom.

📏 Specifications

Degrees of Freedom: 2 DOF (Pitch + Roll)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 50 cm/s (86°/s)

Torque: 25 N·m

Acceleration: 0.7G (T) / 0.5G (L)

Power Consumption: 500 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 330 lbs / 150 kg

Floor Footprint: 2 × 5 ft, 2 ft height (59 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 64 lb (37 × 15 × 11 in) / 29 kg (94 × 38 × 28 cm)

Box 2: 64 lb (32 × 24 × 10 in) / 29 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB connection

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality H2 Helicopter Cockpit?

Professional Flight Experience: Designed for true-to-life helicopter dynamics and fluid motion response.

Smooth & Precise Movement: Enhanced gearboxes deliver controlled, subtle motion for realistic flight control.

Multi-Simulation Capability: Perfect for both helicopter and airplane simulation—and even adaptable for racing.

Robust Construction: Built to withstand intensive use in both personal and professional environments.

Full Immersion Design: Moves all mounted components together for consistent motion feedback.

Trusted Since 2014: Crafted by industry leaders in motion simulation technology.

Comprehensive Support: Backed by a 1-year full warranty and 24/7 customer assistance.

📦 What’s Included

Rigid metal rig (supports normal and F1 seating positions)

Mounts for seat or sliding rails

Integrated power drive motors with enhanced gearboxes

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
